Every machine is subject to rigourous testing,
and is compliant with global safety and environmental impact standards:
Lumos Ultra
Leading-Edge
UV+ MOPA
Production Platform for Growing Businesses
How to Get the Most Savings
MOPA 60W vs 100W Cutting Comparison
Fiber or MOPA? And Which Power Is Right for You?

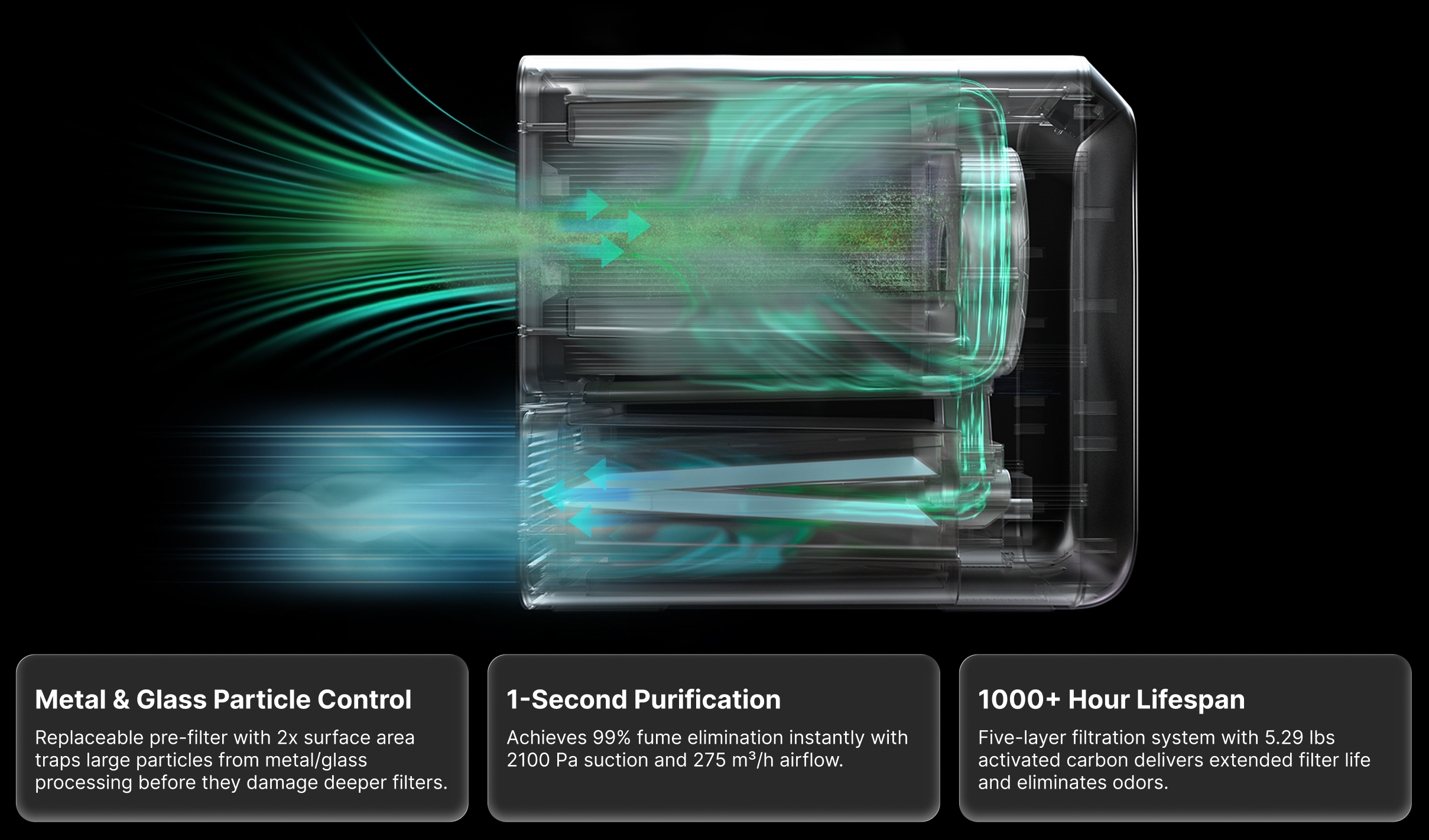

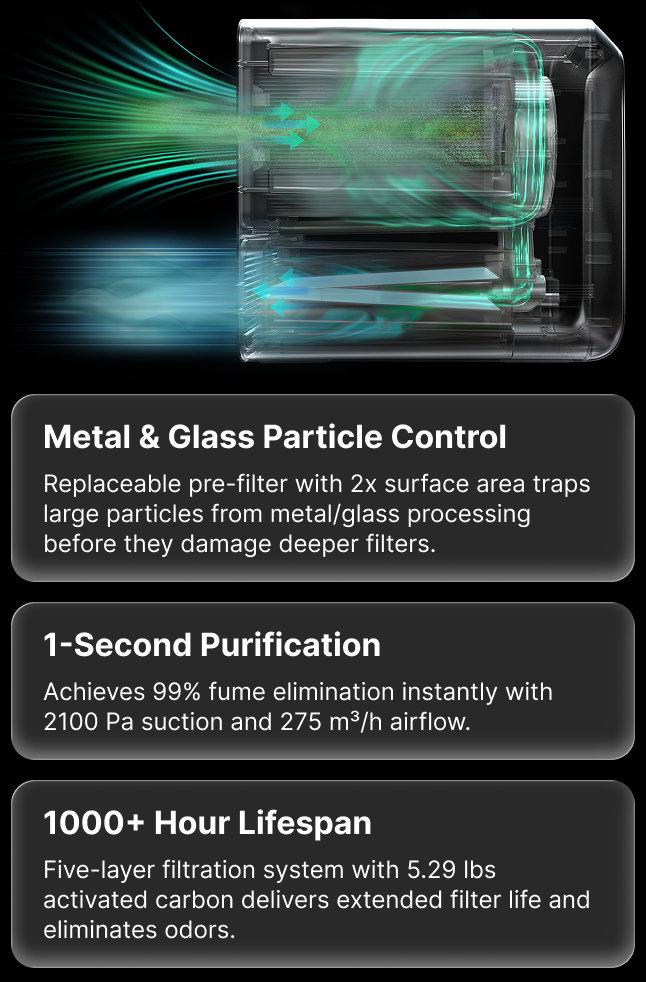

AirGuard Ultra 2.0: Upgraded for Metal & Glass Processing
Safety & Environmental Impact Compliance
UV Meets MOPA .
One Machine. Endless Applications.

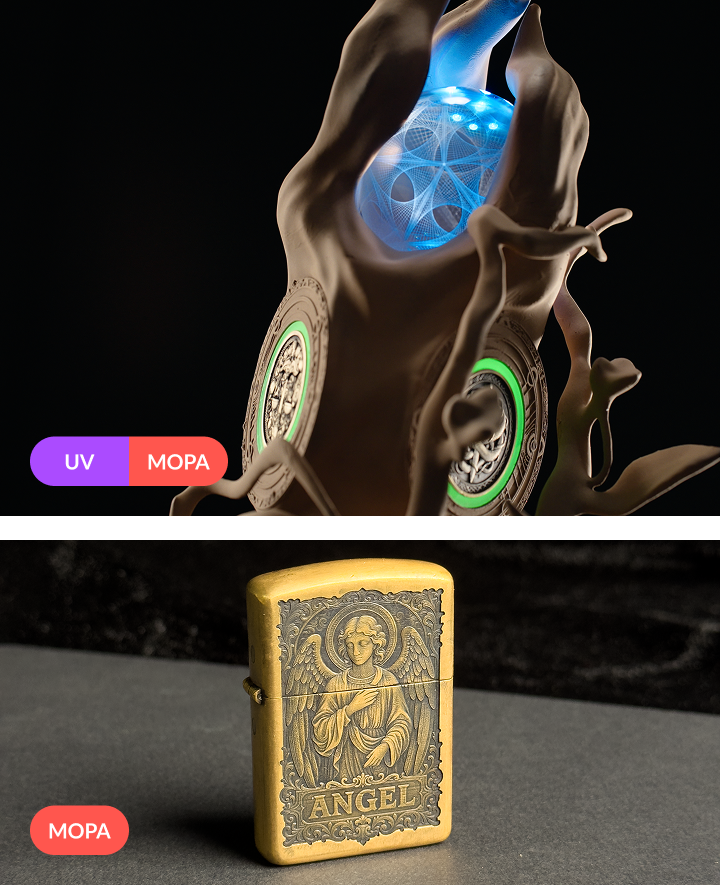

UV Refinement + MOPA Brilliance
UV Handles Almost Anything. MOPA Dominates Every Metal.
10+ Processes. Countless Materials.
Infinite Creative Freedom.
10+ Processes. .
Countless Materials.
Infinite Creative Freedom.
From cold-processed UV precision to micron-level MOPA metal control—one laser platform, every mainstream application.
One-Click Workflow
Set up once. Swap lenses. Switch lasers in a click.
One Machine, 10+ Laser Processes
Covering All Mainstream Laser Applications

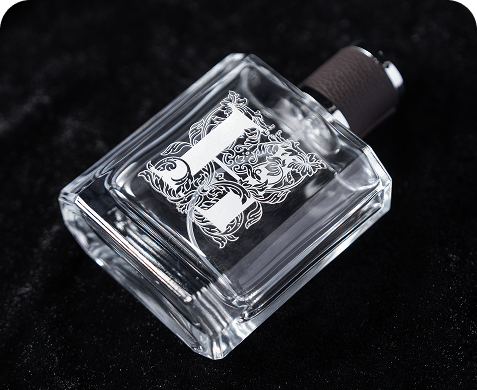

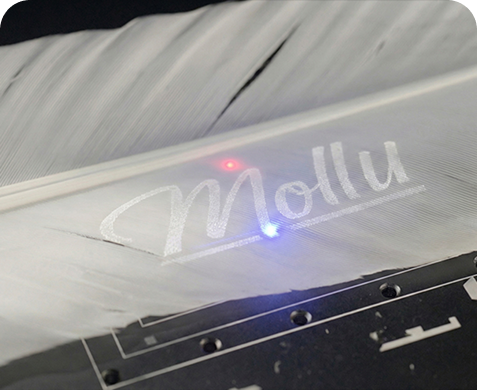

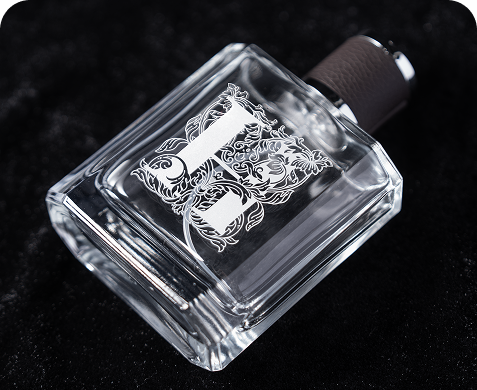

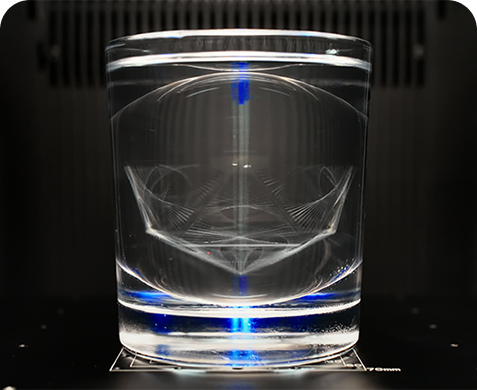

Glass surface Engraving
Glass Inner Engraving
16K Precision Engraving
Cold Processing

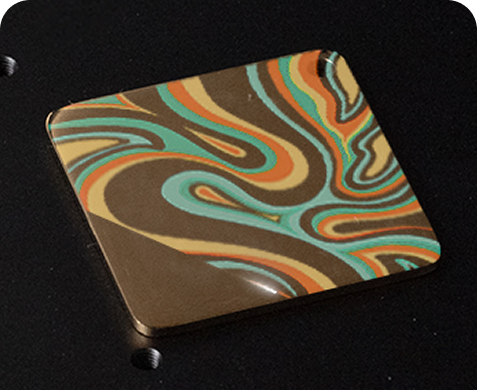

Vivid Color Engraving

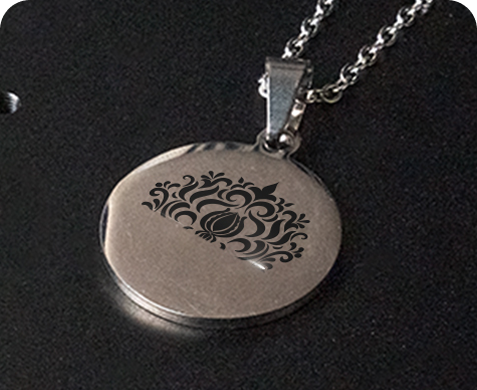

Black Marking
Iridescent Color Engraving

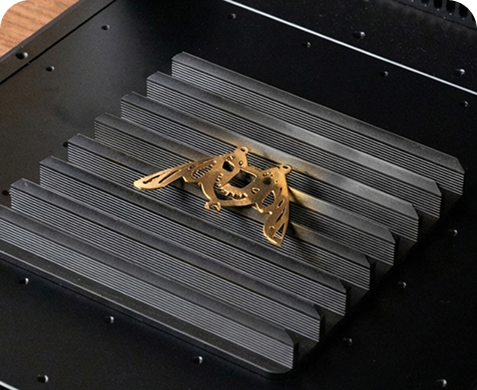

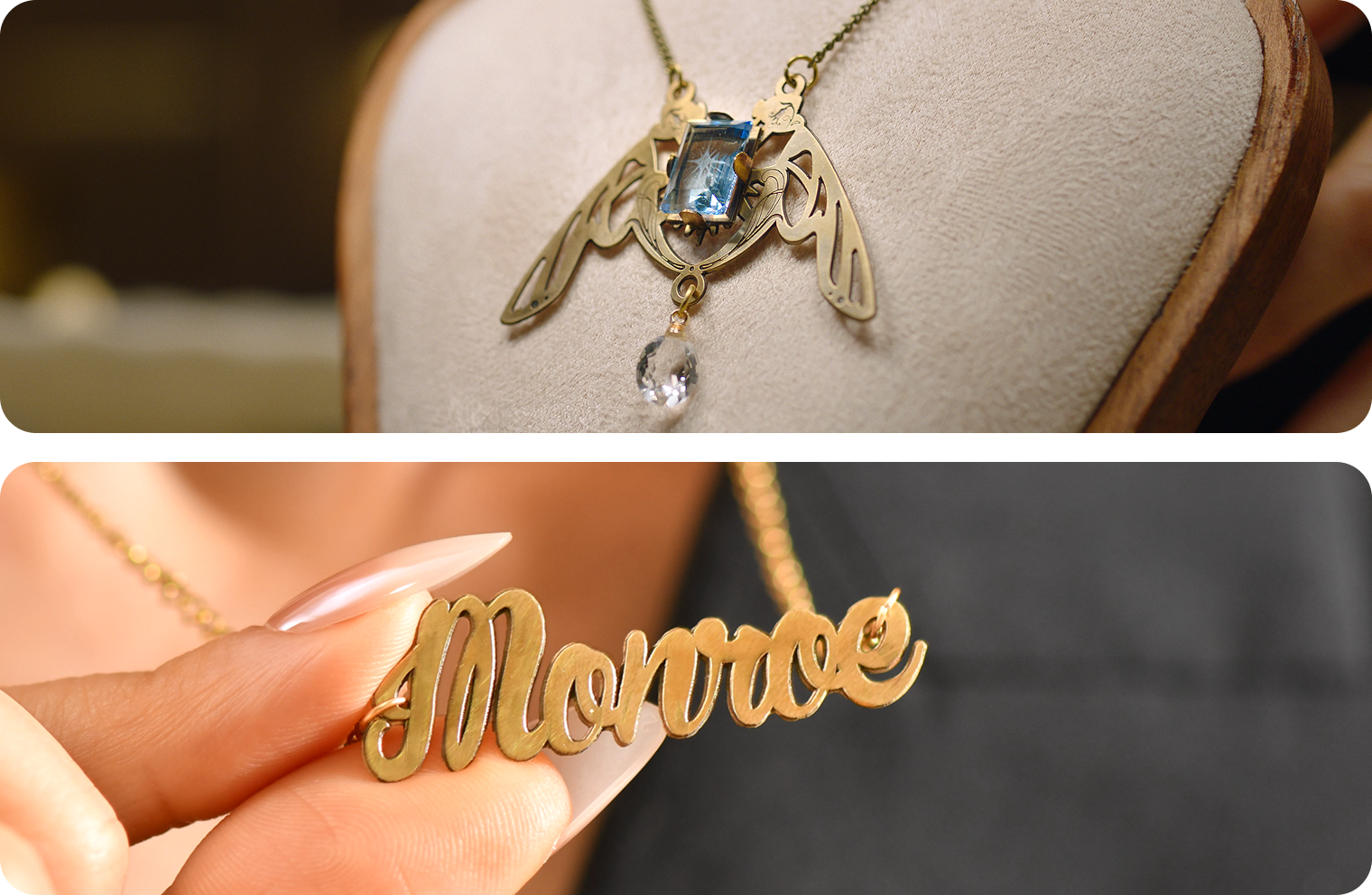

Metal Cutting

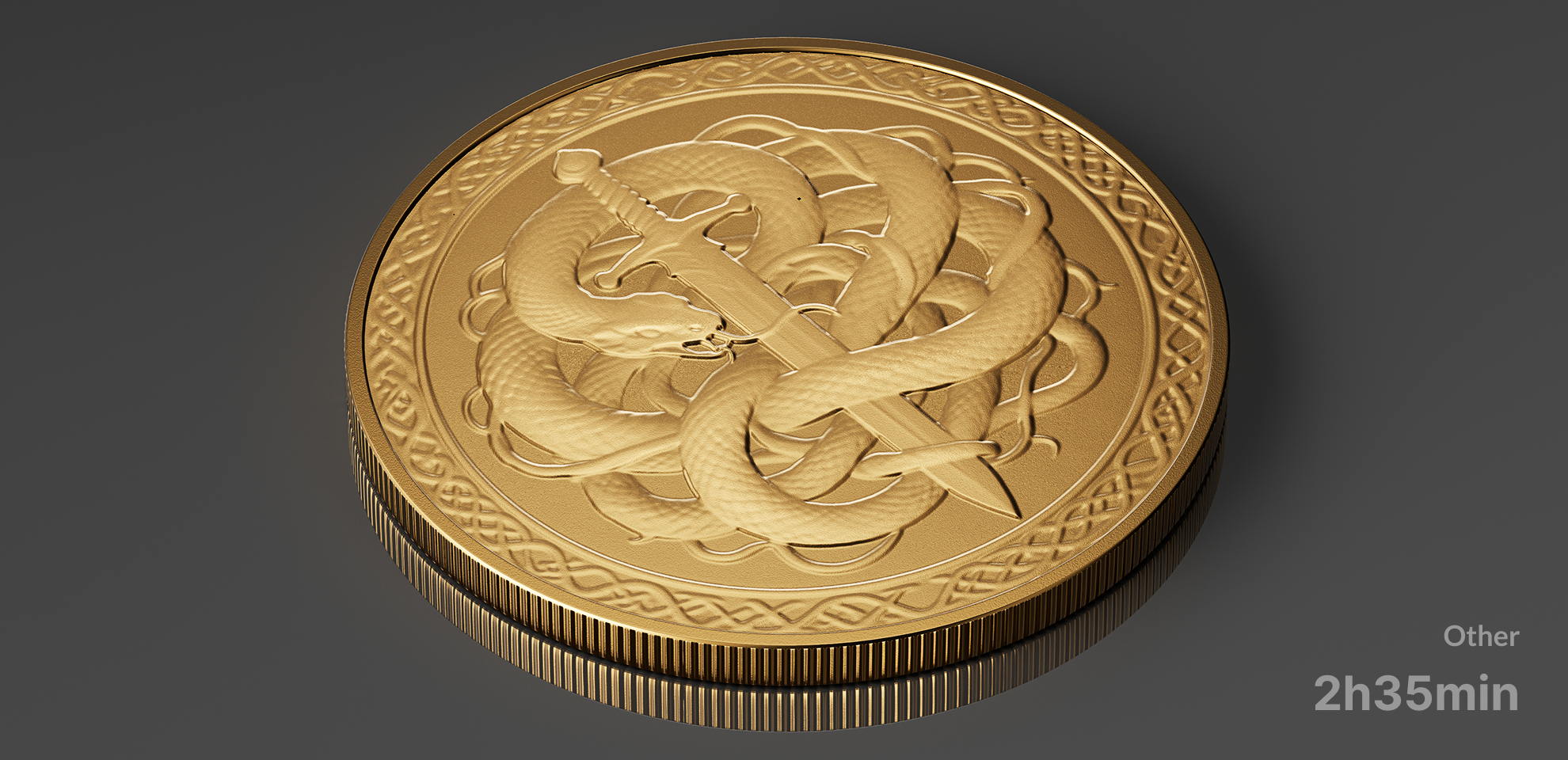

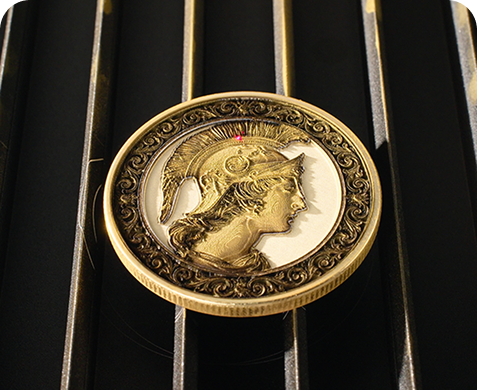

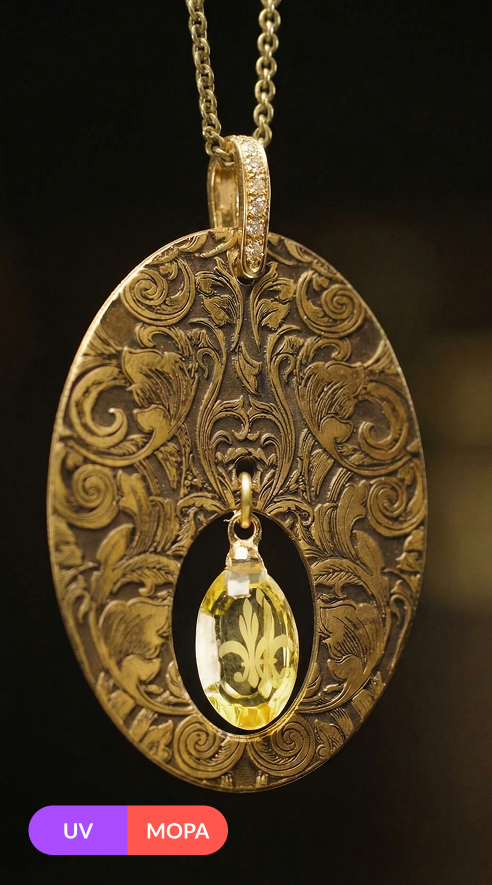

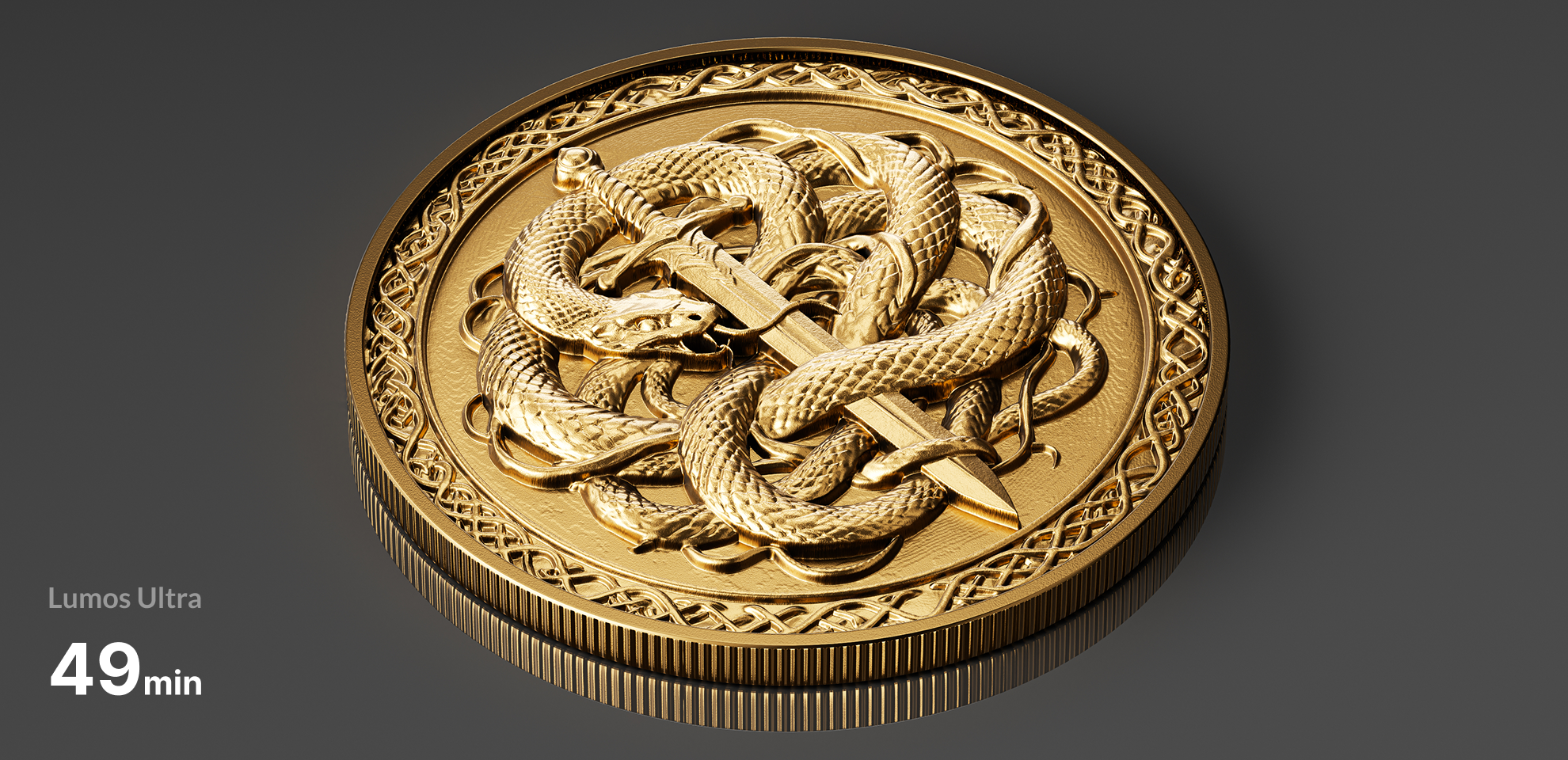

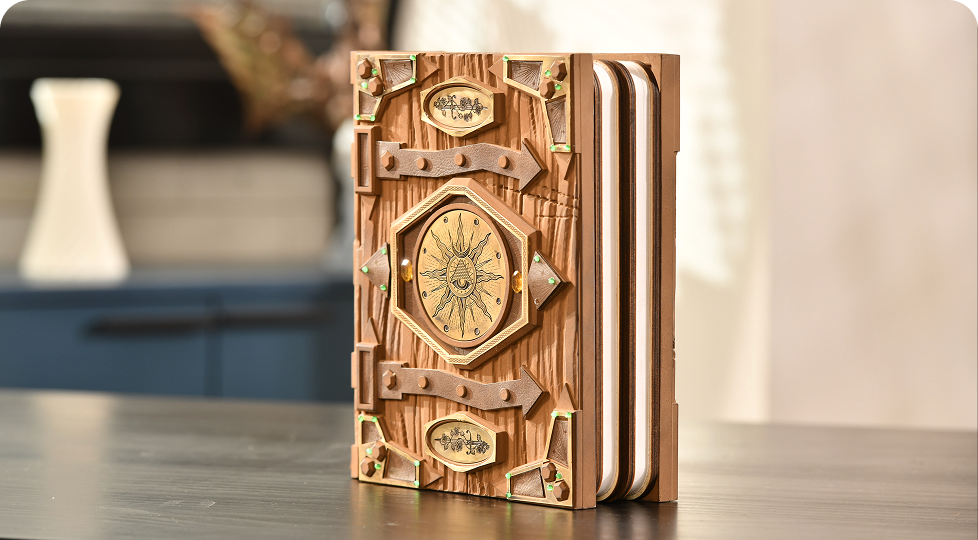

3D Relief Engraving

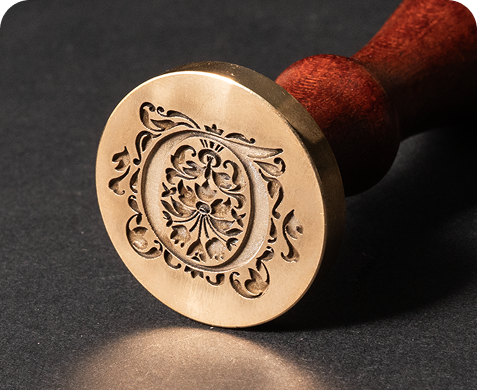

Deep Engraving

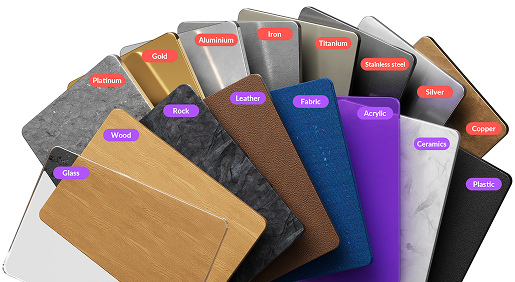

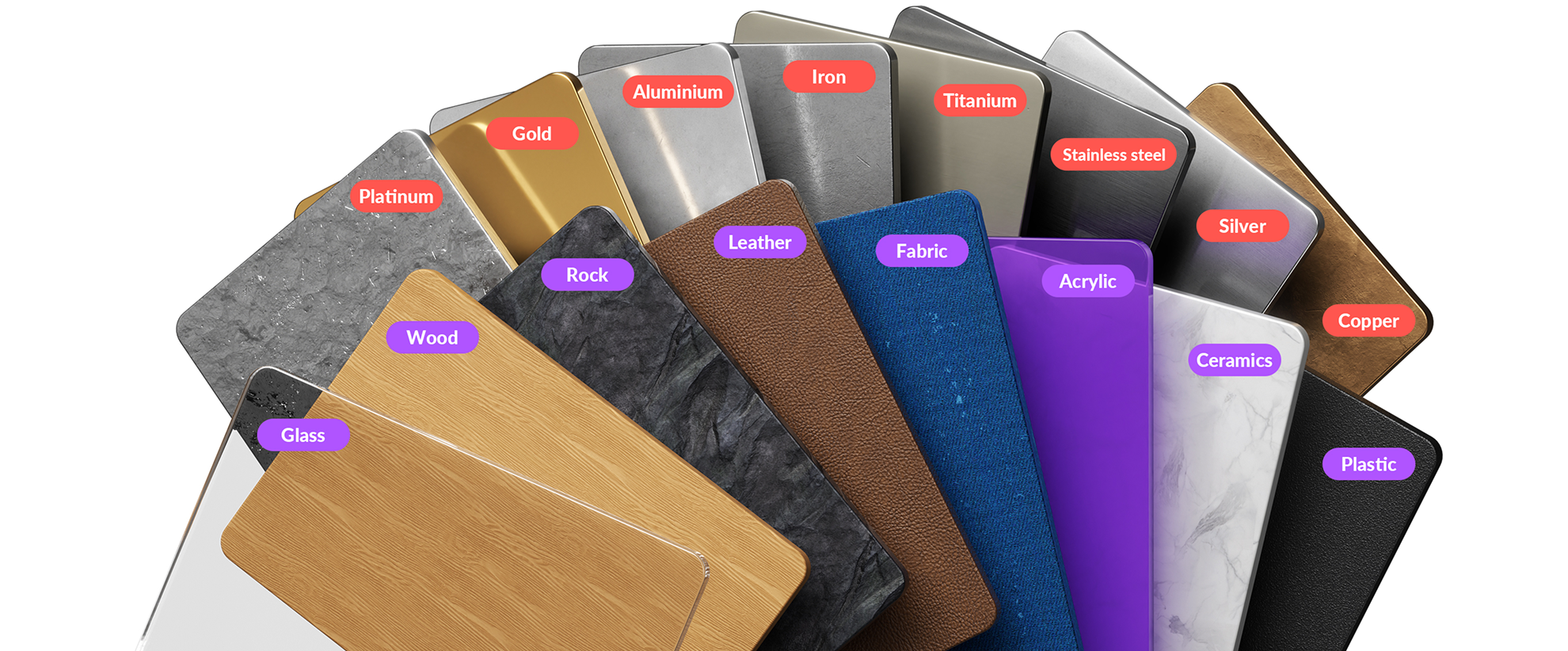

One-Stop Laser System Built for 2,500+ Materials
UV Handles Almost Anything.
MOPA Dominates Every Metal.
MOPA Dominates Every Metal.
MOPA:
Metal Mastery.
Color, Depth & Control.

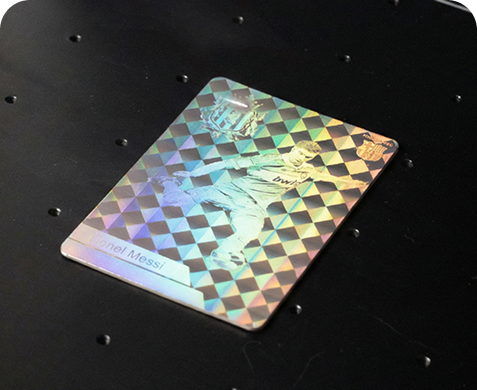

Iridescent Color Engraving
Independent pulse width and frequency control create nanoscale surface structures that refract light, producing dynamic iridescent color shifts beyond conventional fiber lasers.
Vivid Color Engraving
Advanced pulse-by-pulse energy modulation precisely controls oxide layer formation, producing over 100 vibrant, repeatable colors with exceptional process consistency.
MOPA Delivers Precision & Layers Like No Other Laser.
Power is nothing without control. With precise adjustments on pulse width and frequency, MOPA delivers sharper edges, greater depth, and finer details—from delicate surface engraving to bold 3D reliefs on metal.

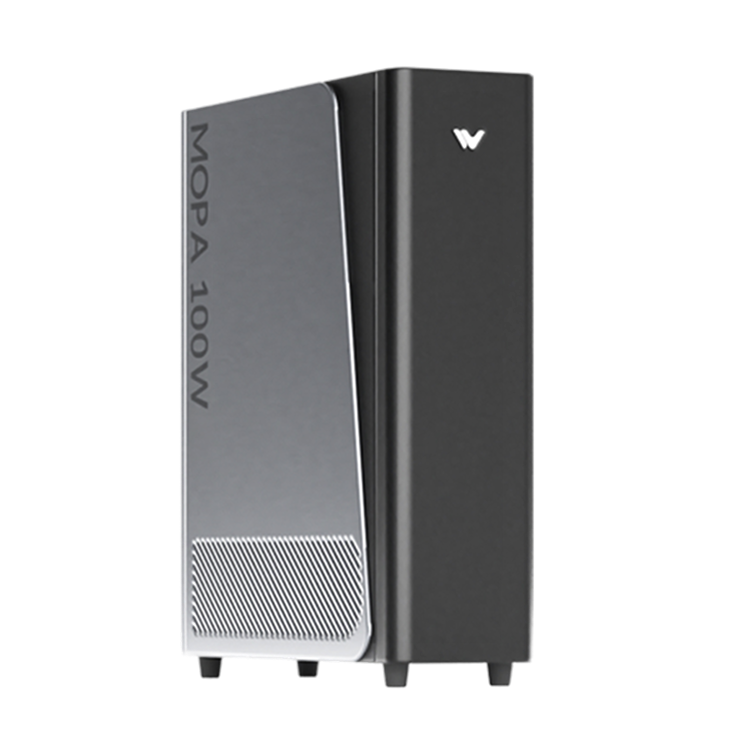

100W MOPA

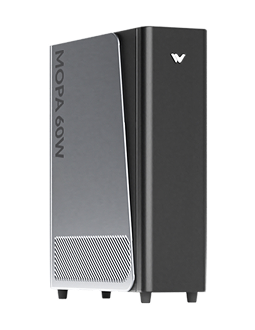

60W MOPA
50W Fiber

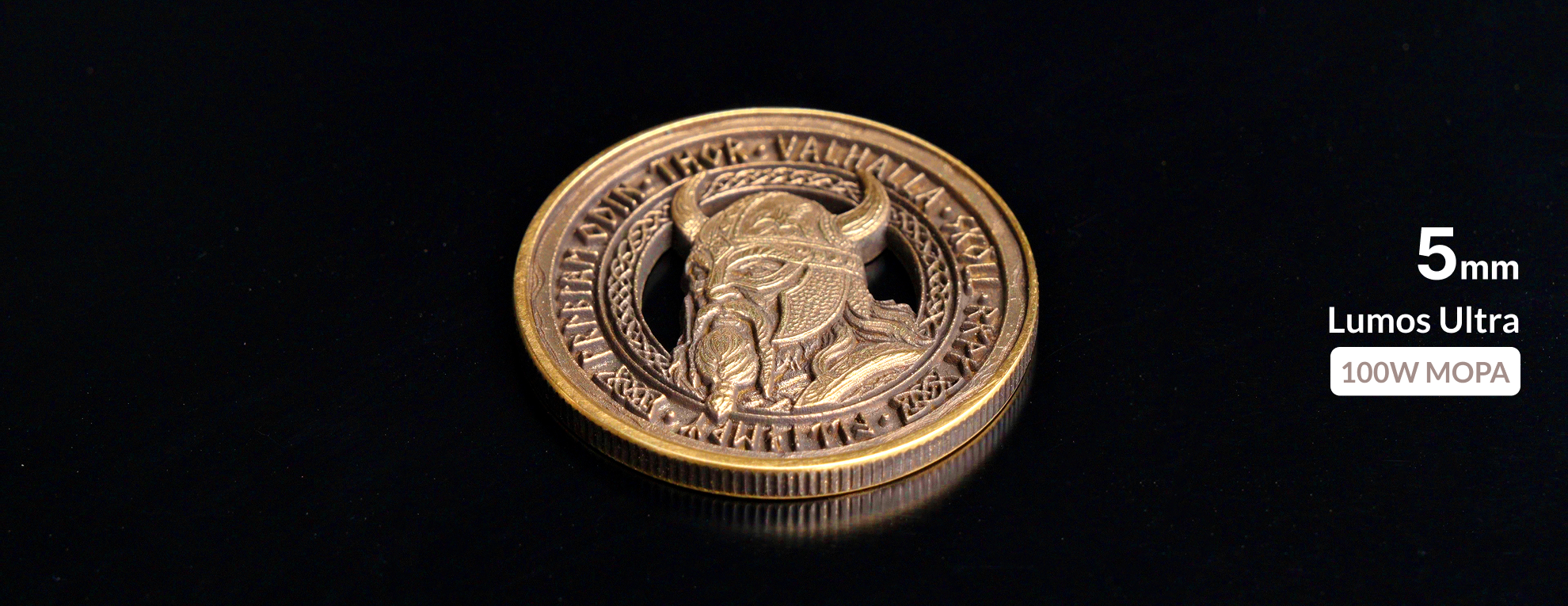

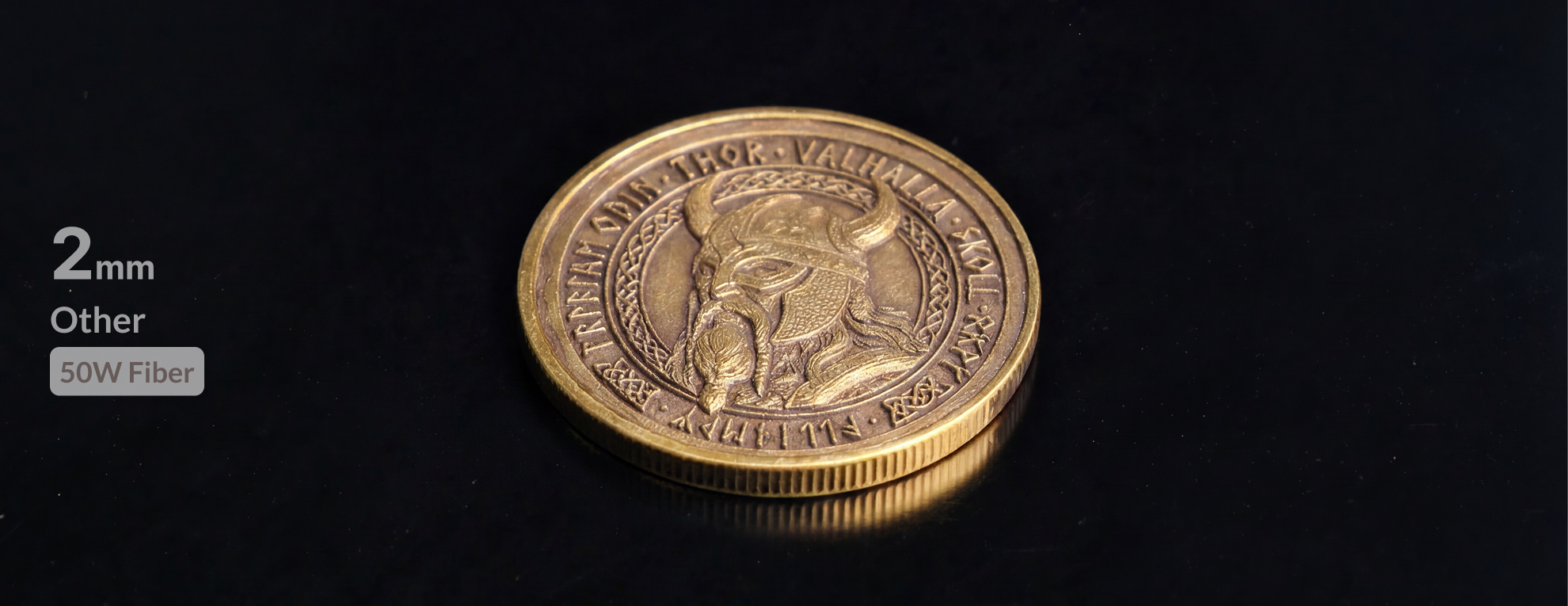

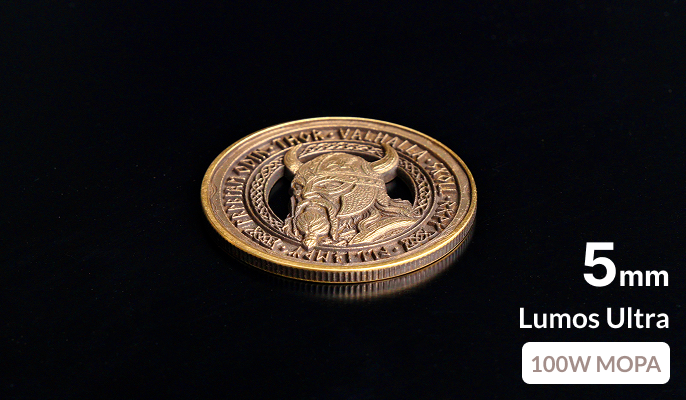

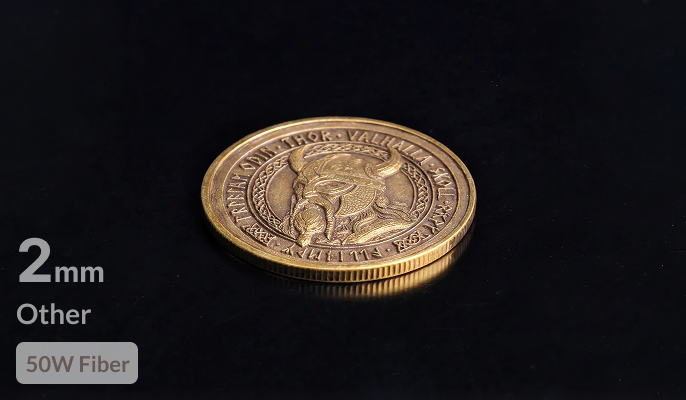

Engraving Depth
5mm
3mm
2mm
Per-pass depth
0.05mm
0.03mm
0.02mm

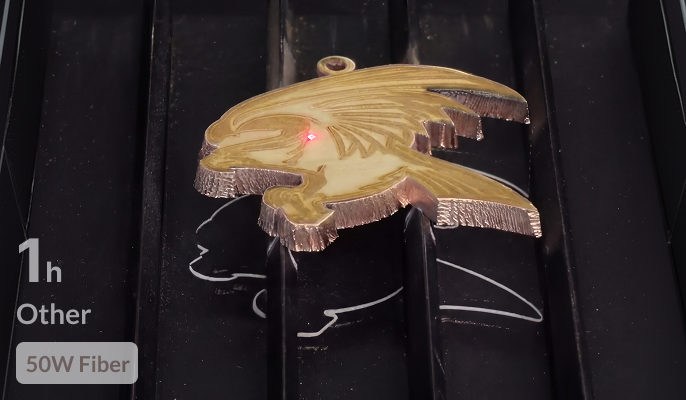

Testing criteria: 2 hours, 100% power, 2000mm/s.

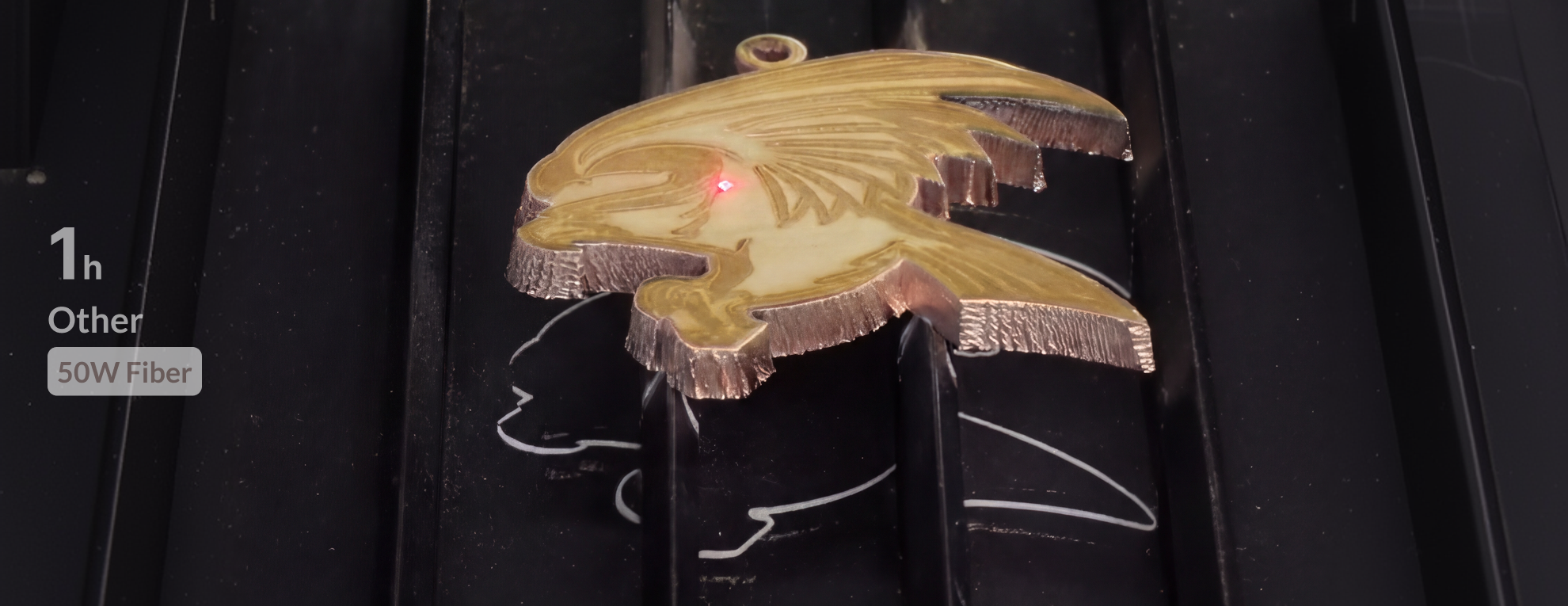

Industrial-Grade JPT MOPA Module , built for 24-Hour Operation.
Powered by an industry-leading JPT MOPA module, Lumos Ultra’s dynamic pulse control outperforms fixed-pulse lasers to deliver thicker cuts, cleaner edges, and superior precision.

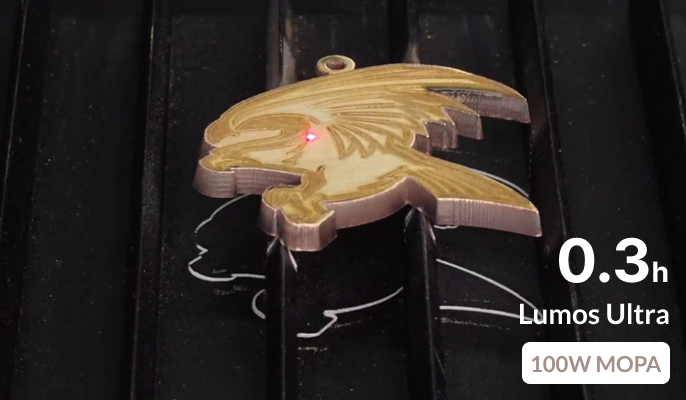

100%
Power
1000mm/s
Speed
100W MOPA
3h
60W MOPA
5.5h
50W Fiber
7h

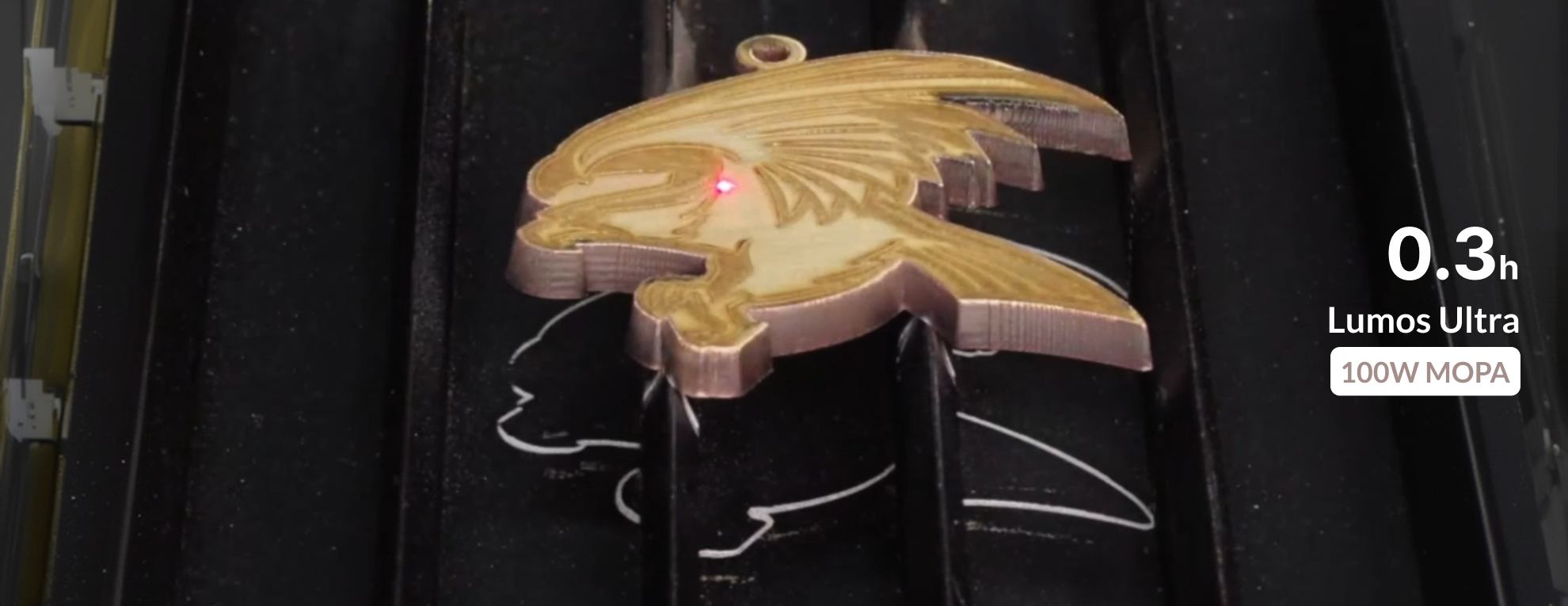

Testing criteria: 100% power, 1000mm/s.

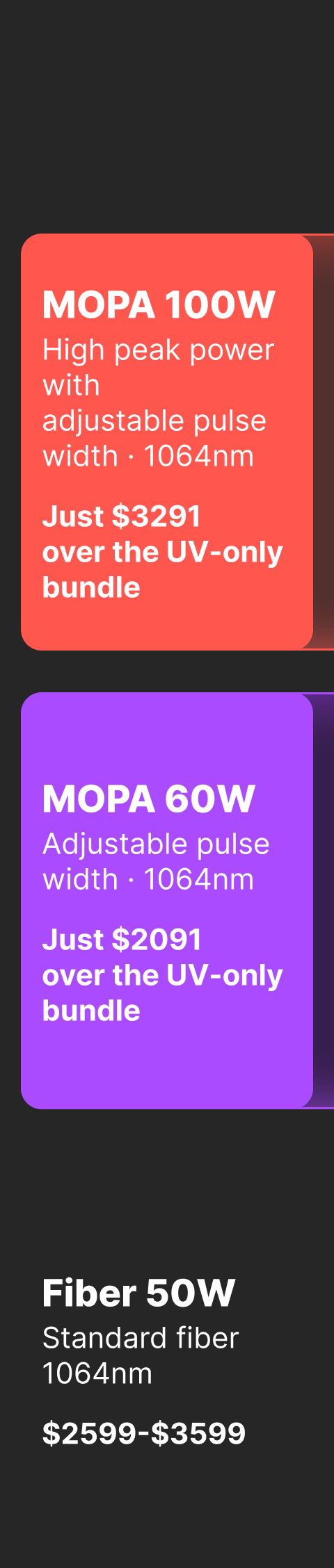

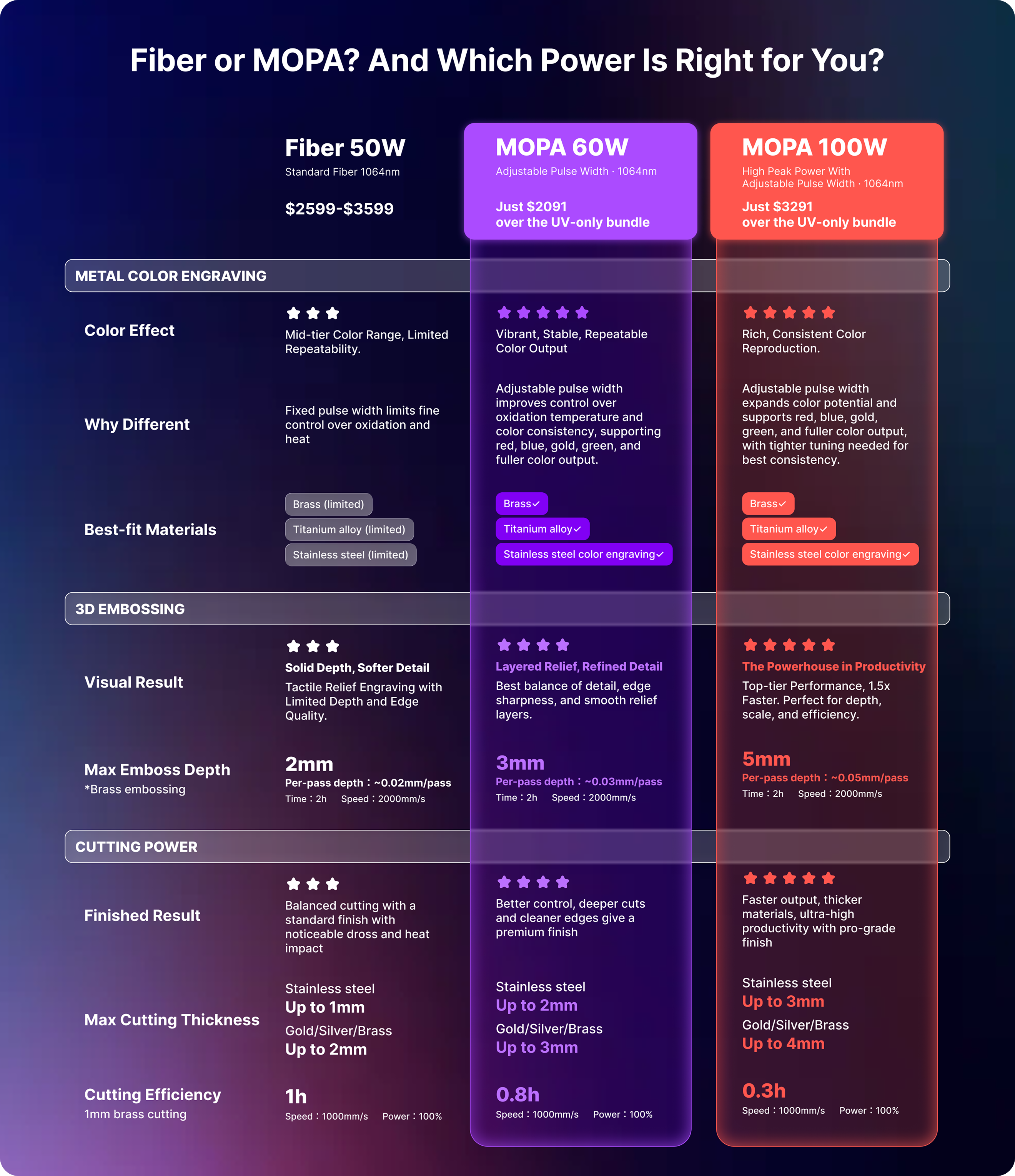

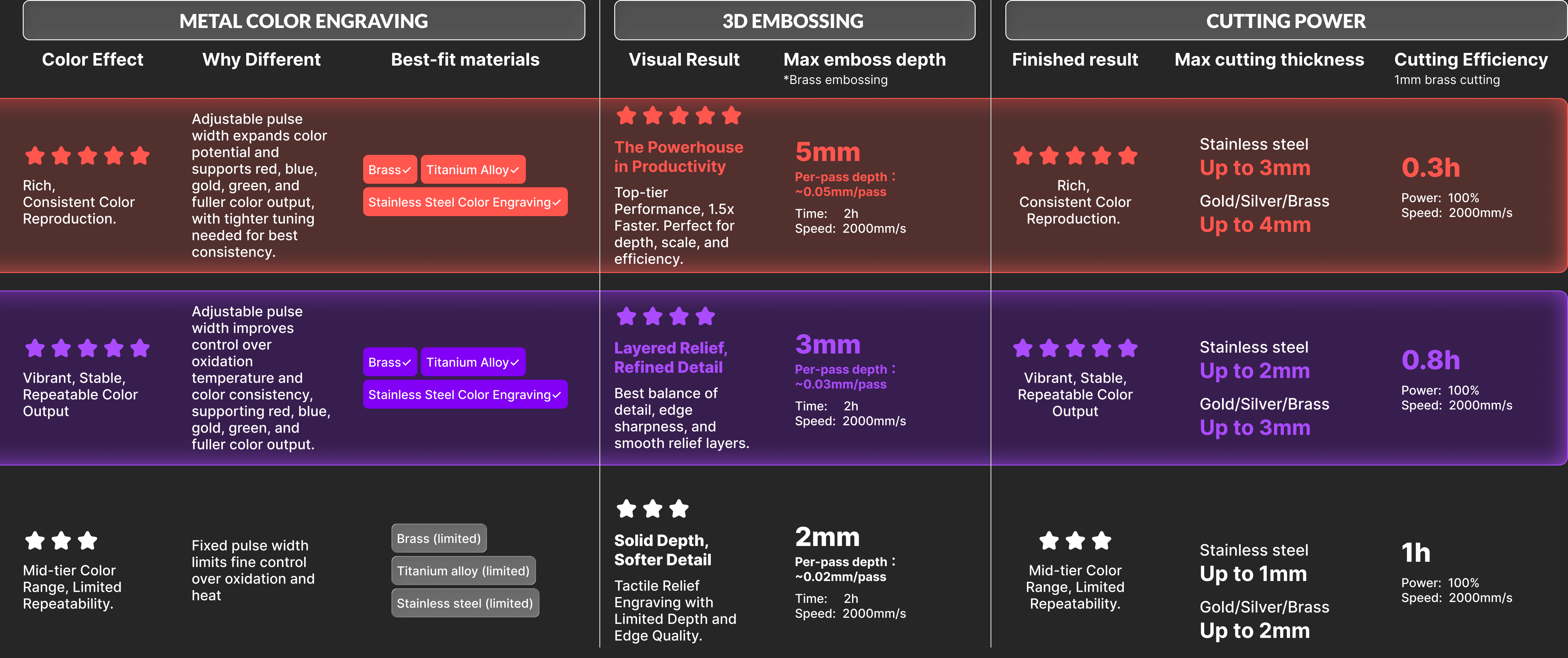

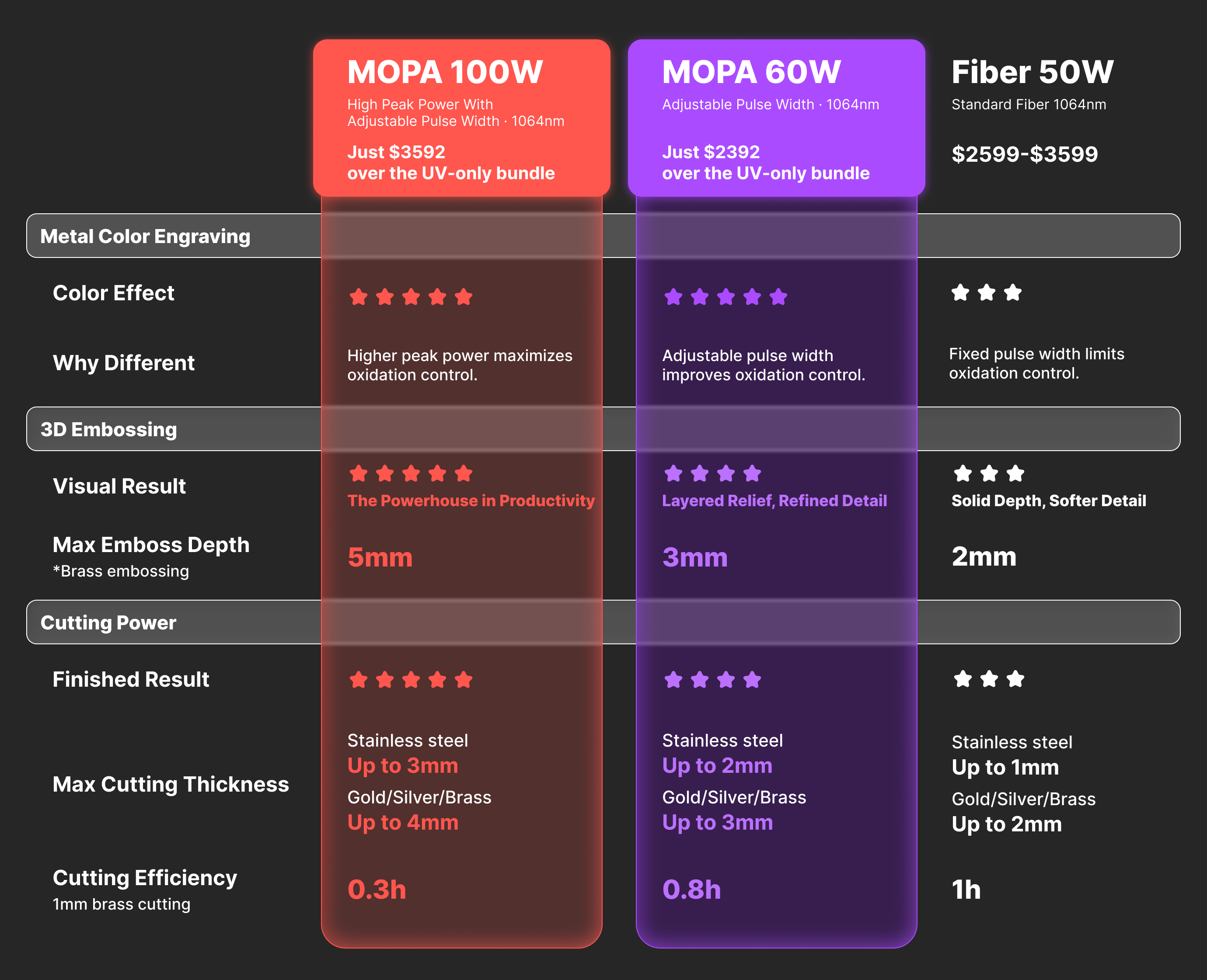

Fiber or MOPA?
And Which Power Is Right for You?
UV: Mark Anything.
Clean, Quick & Precise.

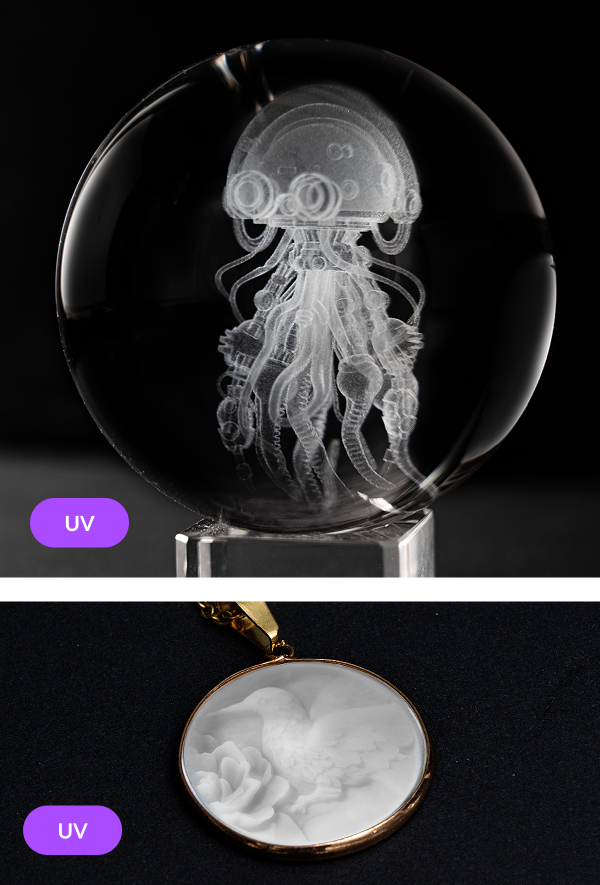

5 Glass Engraving Modes From Surface to True 3D Inside.
Clean, Quick & Precise.

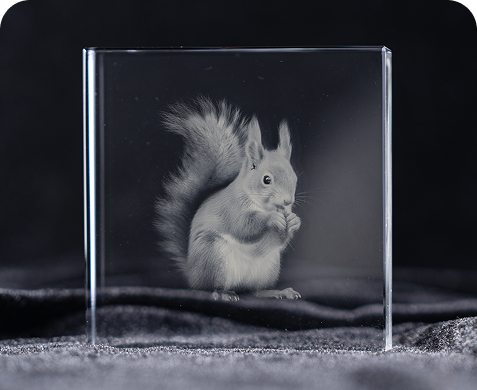

WeCreat Exclusive 3D Textured Subsurface Engraving
Proprietary volumetric depth mapping and adaptive focal control generate ultra-high-density internal point structures, reproducing intricate textures with exceptional depth fidelity and volumetric realism.
3D Inner Engraving
2.5D Inner Engraving
2D Inner Engraving

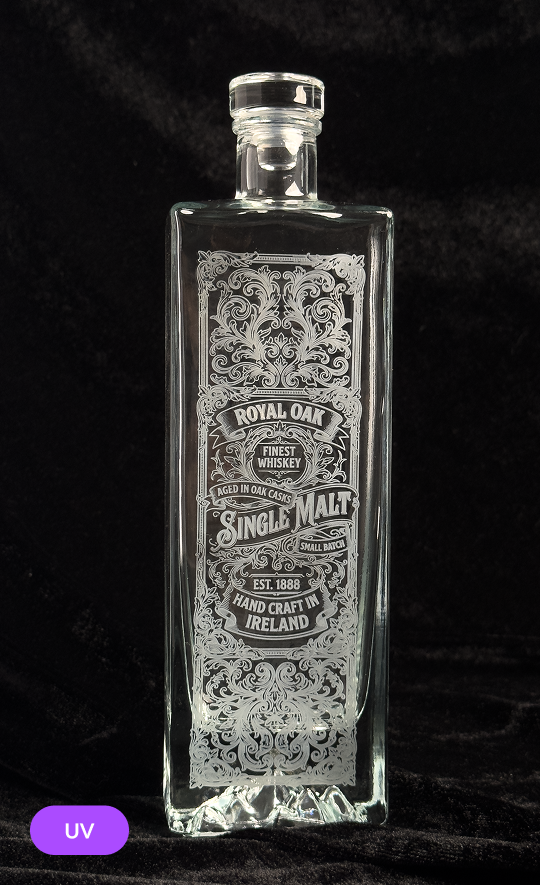

Surface Engraving
UV Exclusive:
Cold Processing,
Zero Thermal Impact.
Cold Processing,
Zero Thermal Impact.

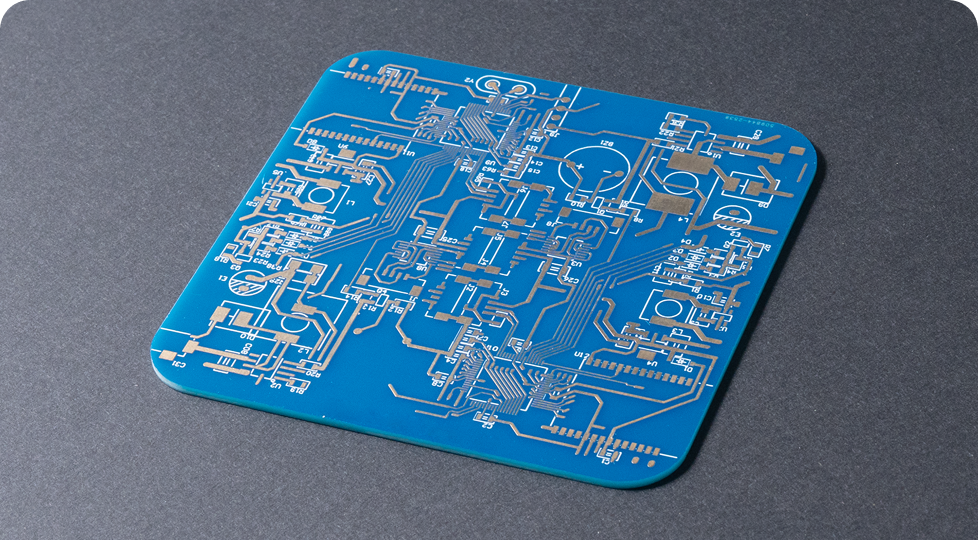

High-photon UV lasers break down molecular bonds with minimal heat, delivering clean, precise cuts on heat-sensitive materials like wood, leather, and feather with no burn and no char.
Ultra-fine

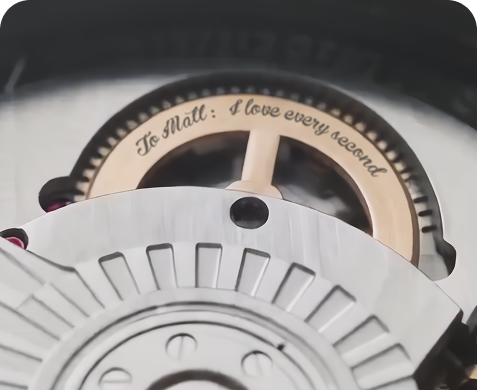

16K Precision Engraving
16K Precision Engraving
With an ultra-fine 0.0019 mm focal spot, Lumos Ultra resolves micro-textures, sharp edge transitions, and complex geometries with outstanding dimensional accuracy and minimal thermal distortion.
Ultra-Fine 0.0019mm Laser Spot
CO₂ Average Laser spot
0.5mm
Ultra-Fine Laser Spot
0.0019mm
Finer than CO2

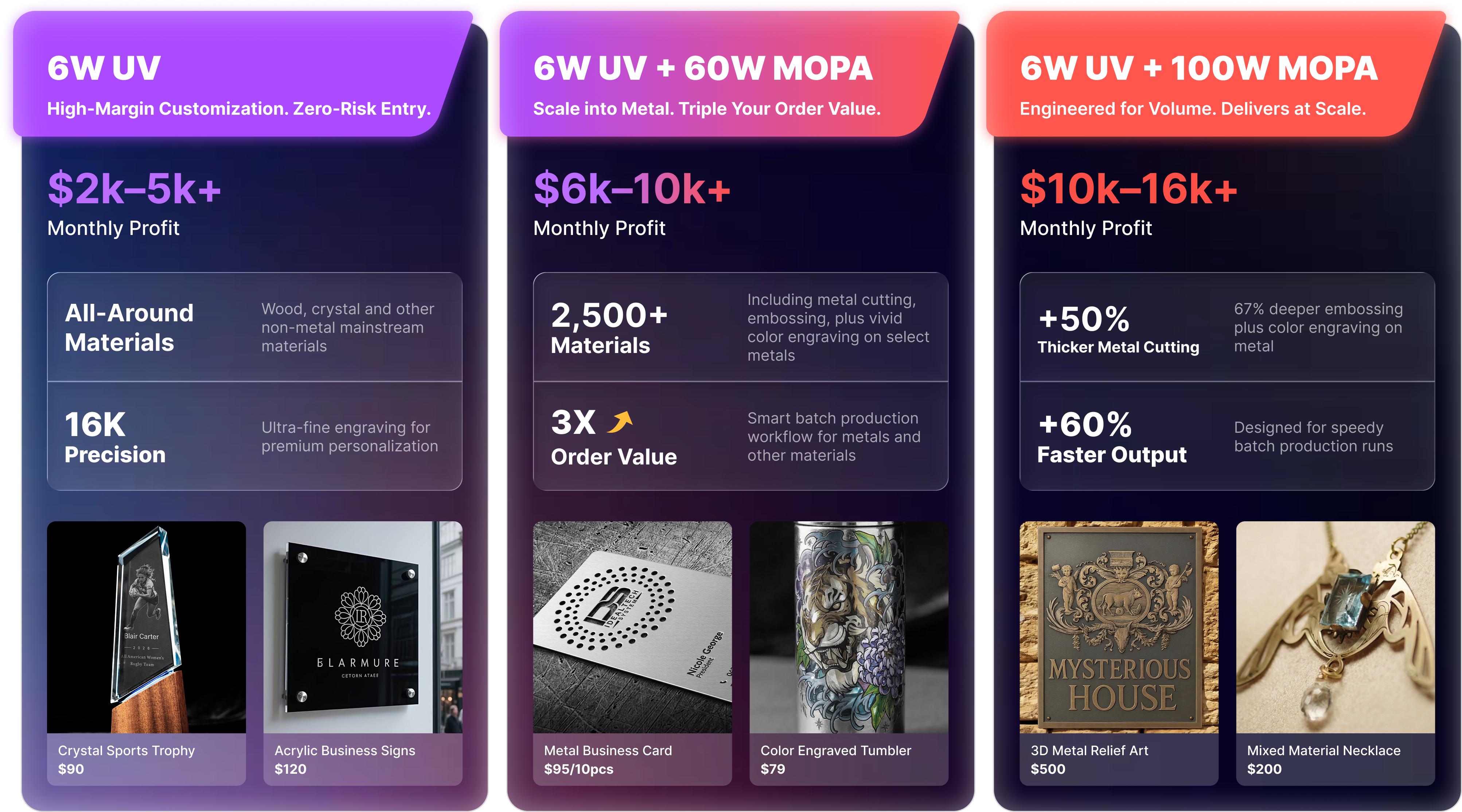

Step Up Your Machine. Step Up Your Margins.
Upgrade Your Profits with Every Step Up. Multiply Your Returns with Each Tier
UV & MOPA
One-Click Switching
One-Click Switching
Switch between UV and MOPA in one click — Unlock high-margin customization across countless materials and applications, with no change in machine or software.
From Ideas to Masterpiece in One Smooth Workflow
Lumos Ultra’s all-in-one software removes complexity and turns professional workflows into simple, intuitive actions.
Powerful AI Generation for 3D Models and Images
One-click AI generation turns text or images into vectors, height maps, and 2.5D/3D models—simplifying design, accelerating workflows, and unlocking new creative possibilities.
A rich, growing library of 1,000+ ready-to-use projects — plus 500 fonts and QuickView material parameters library — no design skills required.
Color Quickview → Choose your colors → Start engraving. Complex MOPA color engraving, simplified to three steps.
Automatically detects whether the correct field lens is installed.
Auto-fill multiple materials with your design to expedite batch engraving.

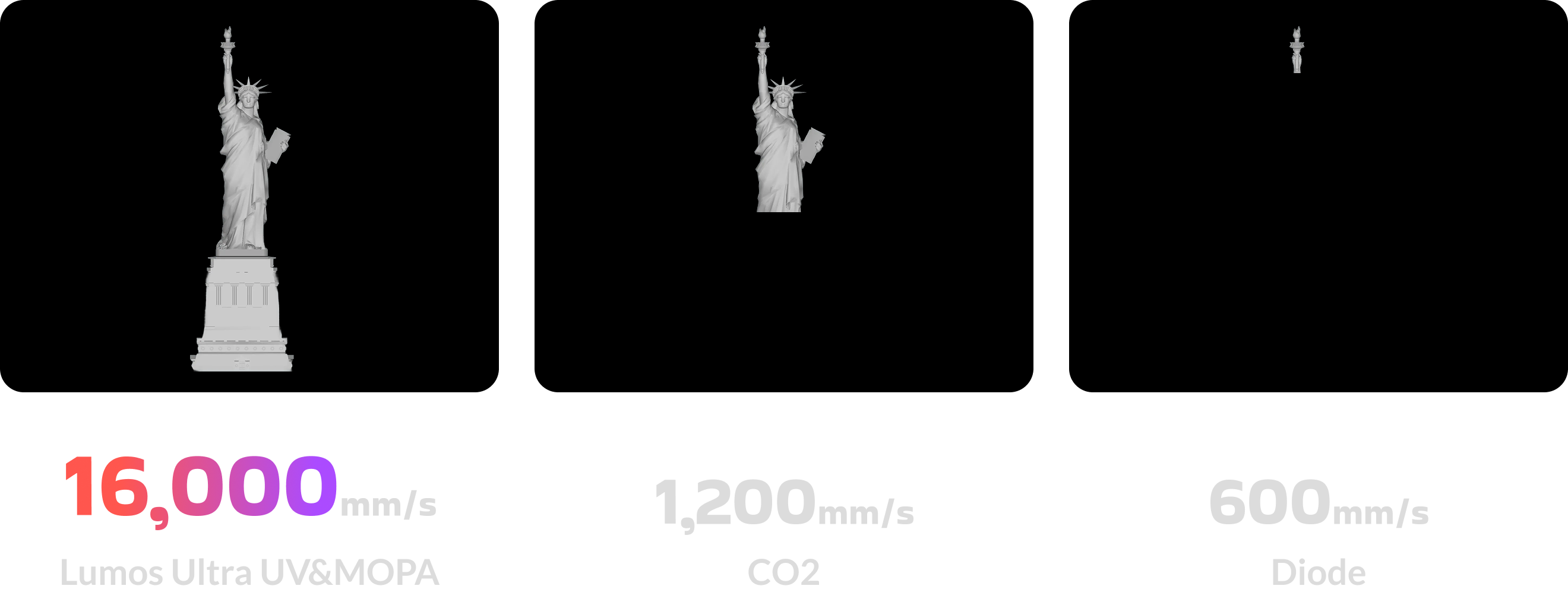

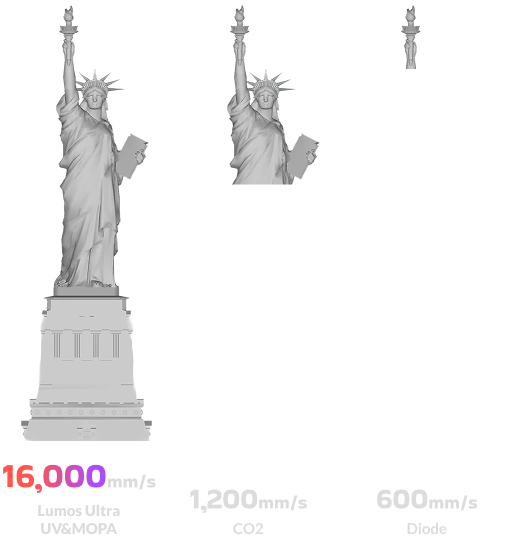

Ultra-Fast Engraving
Powered by a high-speed galvo system, Lumos Ultra reaches up to 16,000 mm/s—delivering real productivity gains for professional creators.
Bigger Workspace, More Possibility
Standard Processing
210 × 210mm precision workspace for everyday engraving and cutting.

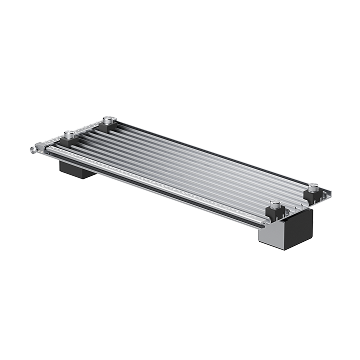

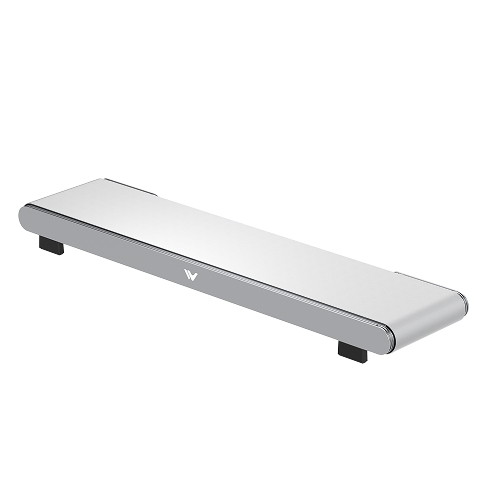

Longest Conveyor
1000 × 200mm continuous feed — automate batch runs without repositioning.
Slide Extension
520 × 183mm, 2× the standard workspace for oversized projects and larger batches.

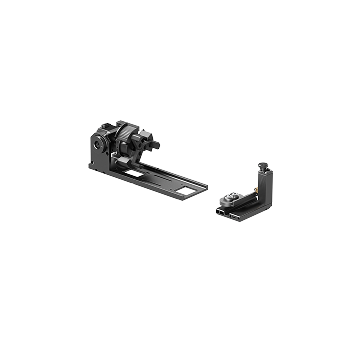

Rotary+Slider Combo
Engrave cylinders up to 380mm end-to-end — one setup, full coverage.
Why Choose WeCreat's One-stop Productivity Machine

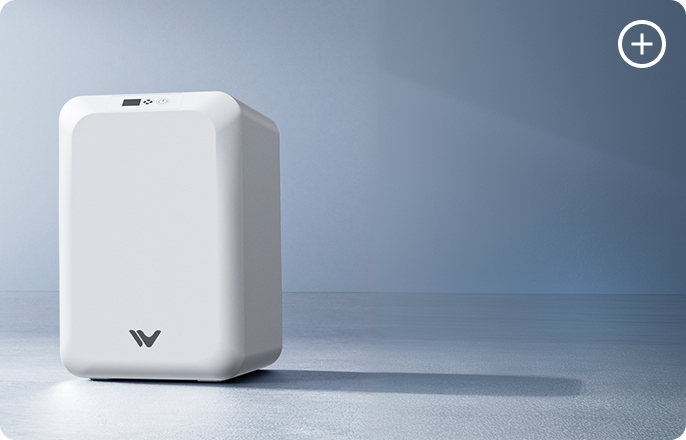

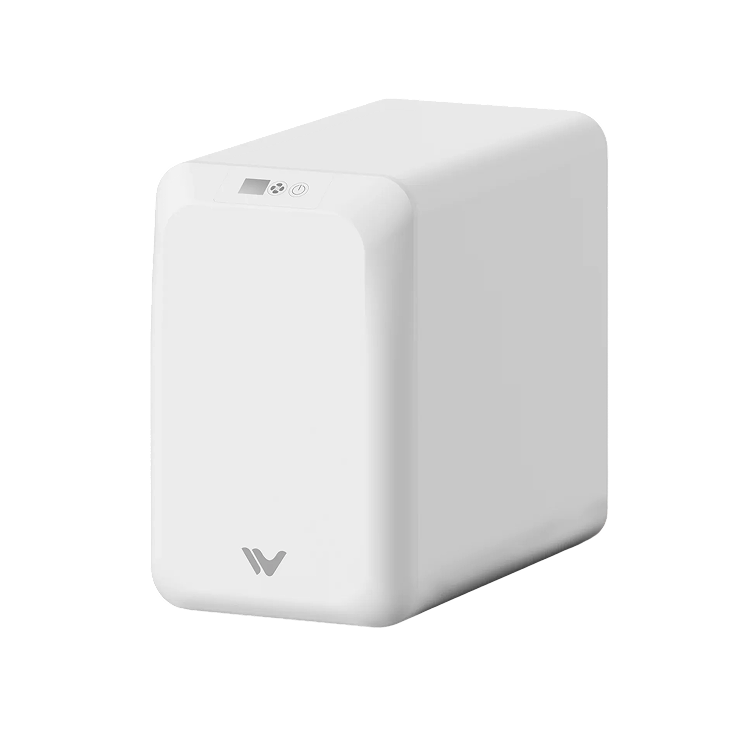

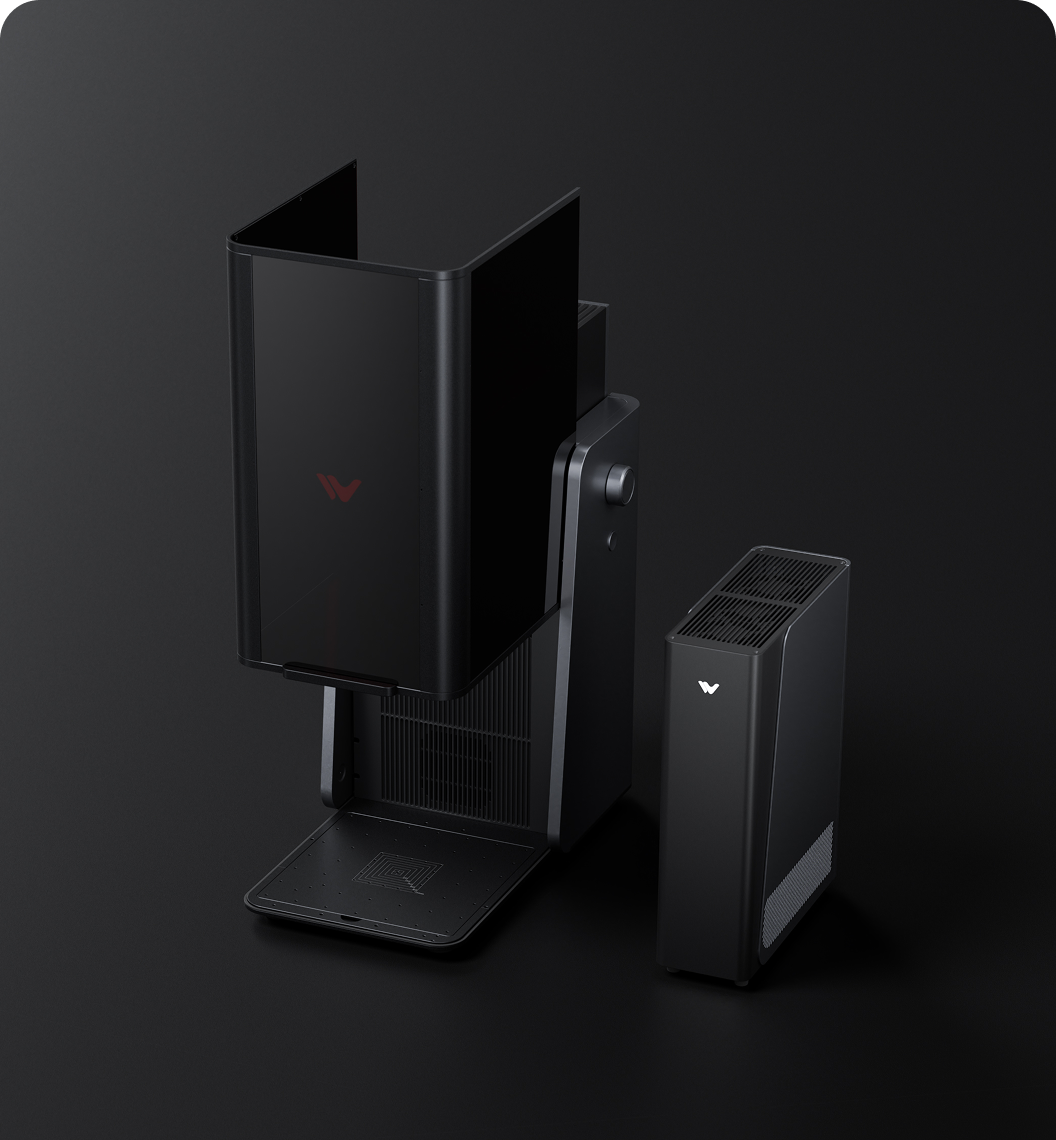

A Cooler, Cleaner, Safer Workspace

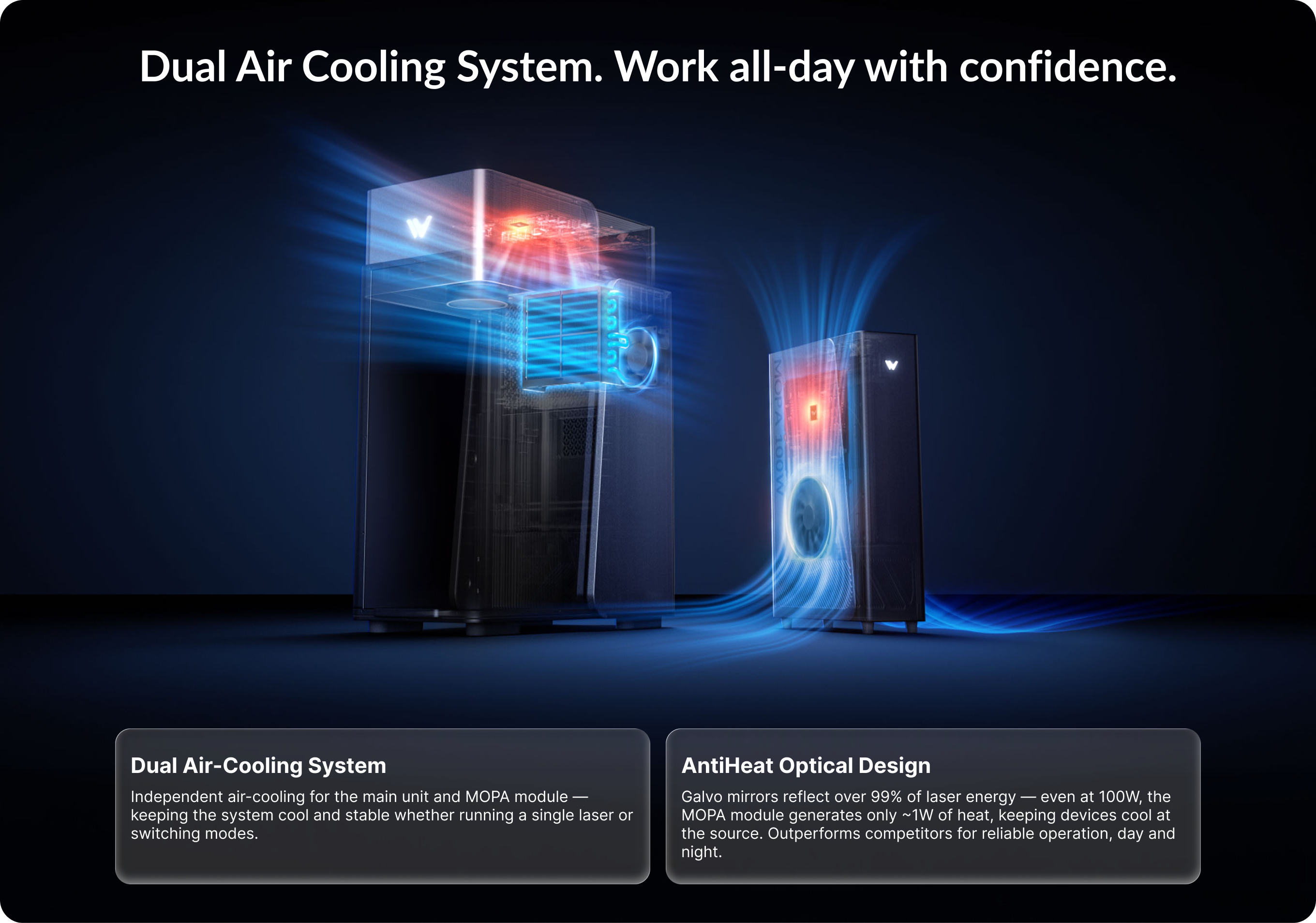

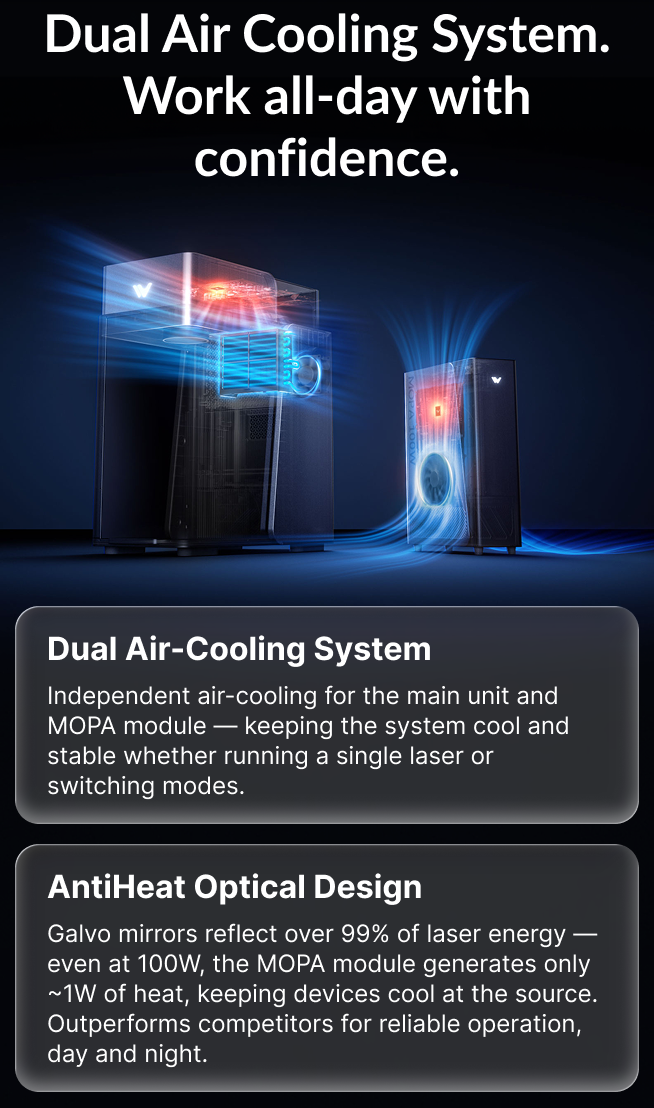

Dual Air Cooling, Non-Stop Creating

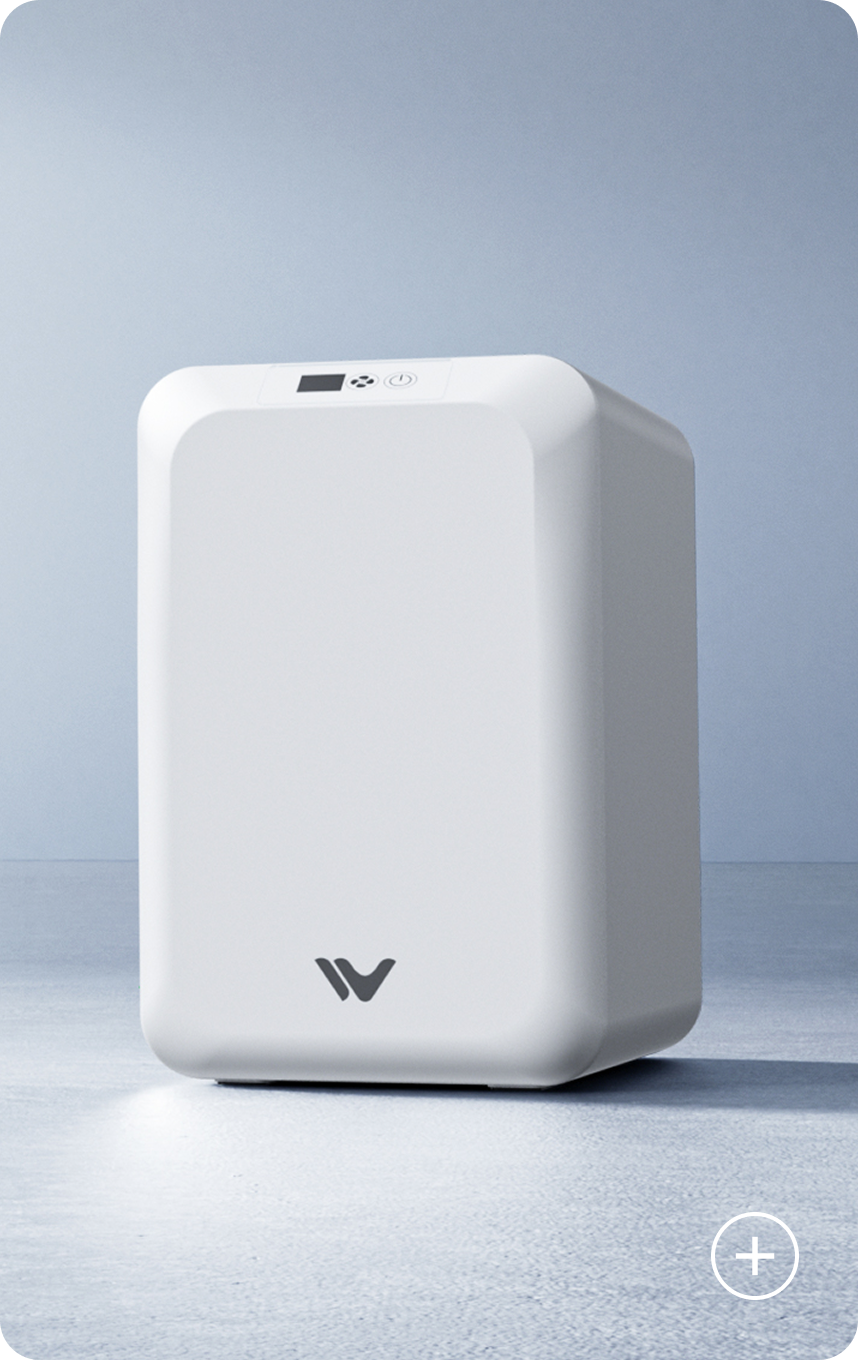

Safe from Fumes, Dust and Debris
Safe for You, Safe for Our Environment
Tried, Tested, and Trusted.
Daniele Tartaglia
1.09M Subscribers
The world's first machine to combine two cutting-edge technologies into an incredibly compact design... with this machine, you can do practically anything, from high-quality PCBs to ultra-high-quality 3D engravings.
TimWelds
481.6k Subscribers
It’s a truly well-thought-out system that combines a UV laser for delicate materials with a MOPA Fiber laser for professional metal work... You can cover a lot of bases and produce much higher-value objects if you're using this for a small business.
Cornelius Creations
214.8k Subscribers
You're saving 35% plus in cost and 90% of your time... Plus, you’re saving 50% plus space in your workshop. From a business and creator perspective... they made it too hard to ignore.
Samcraft ®
154k Subscribers
No switching between machines—one system does it all. You're not just engraving products; you're creating full multi-material builds, which means higher value products and more ways to actually sell what you make.
Tripods Garage
101.5k Subscribers
This is a very capable laser... having a MOPA combined with a UV laser is one of the best things for you to get a business started.
One-Stop Versatility Solutions
Specifications
Processing Capacity
Laser Type
6W UV Laser + 60W/100W Mopa Laser Add-on Module
Supported Materials
UV Compatible Materials:
Crystal, Glass, Basswood, Leather, Fabric, Shell, Acrylic, ABS, Silicone, Resin, Ceramics, Plywood, Bamboo, MDF, Oak, Walnut, Maple, PU Leather, Denim, Synthetic Fiber, Canvas, Felt, Jute/Burlap, Soap, Marble, PLA, Aluminum, Stainless Steel, Gold, Silver, Titanium, Coated Metals, etc.
MOPA Compatible Materials:
Brass, Stainless Steel, Aluminum, Titanium, Sintered Stone, Iron, Silver, Platinum, Gold, Chrome-plated Metal, Zinc Alloy (Plated), Nickel, PCB (FR4), Leather, Slate, Coated Metals, etc.
Crystal, Glass, Basswood, Leather, Fabric, Shell, Acrylic, ABS, Silicone, Resin, Ceramics, Plywood, Bamboo, MDF, Oak, Walnut, Maple, PU Leather, Denim, Synthetic Fiber, Canvas, Felt, Jute/Burlap, Soap, Marble, PLA, Aluminum, Stainless Steel, Gold, Silver, Titanium, Coated Metals, etc.
MOPA Compatible Materials:
Brass, Stainless Steel, Aluminum, Titanium, Sintered Stone, Iron, Silver, Platinum, Gold, Chrome-plated Metal, Zinc Alloy (Plated), Nickel, PCB (FR4), Leather, Slate, Coated Metals, etc.
Processing Mode
Laser Cutting
Laser Engraving
Laser Engraving
Max. Laser Cutting Capacity
(Wood)
(Wood)
UV: 15mm
Max. Laser Cutting Capacity
(Black Acrylic)
(Black Acrylic)
UV: 12mm
Max. Laser Cutting Capacity
(Stainless Steel Sheet)
(Stainless Steel Sheet)
UV: 0.6mm
60W MOPA: 2mm
100W MOPA: 3mm
60W MOPA: 2mm
100W MOPA: 3mm
Max. Working Speed
16000mm/s
Working area
Standard Work Area: 210*210mm
Crystal Inner Engraving: 70*70mm
Slide Extension: 520mm*183mm
Auto Conveyor: 1000mm*200mm (Batch Feeding)
Crystal Inner Engraving: 70*70mm
Slide Extension: 520mm*183mm
Auto Conveyor: 1000mm*200mm (Batch Feeding)
Max. Processing Height Without Riser
Surface Engraving: 130mm
Inner Engraving: 160mm
Max. Rotary Engraving Diameter
100mm
Easy Operation
HD Camera
Auto Focus
Pre-assembled
World's 1st QuickView
3D Preview
Positioning Method
Camera Positioning
Manual Positioning
Manual Positioning
Preview Method
Smart Camera Preview
Accuracy & Precision
Laser Spot Size
UV：0.0019mm
60w & 100w MOPA：0.03mm x 0.03mm
60w & 100w MOPA：0.03mm x 0.03mm
Ranging Precision
0.01mm, Camera
Image Resolution
16k
Motion Accuracy
0.00199mm

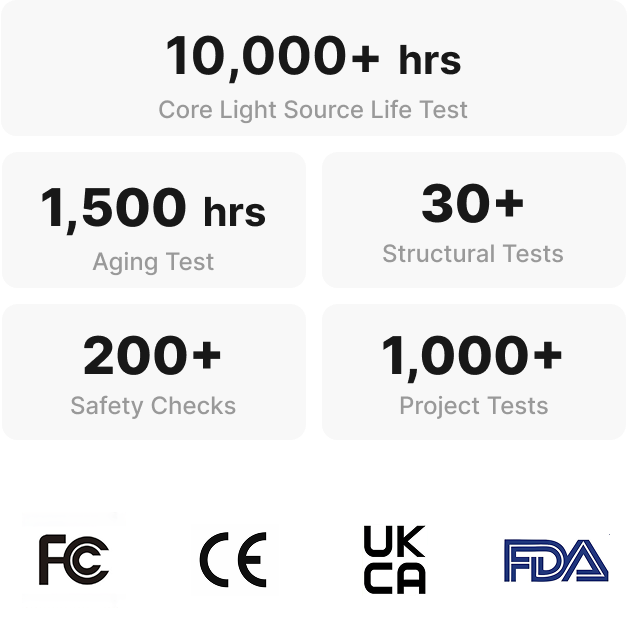

Safety & Durability
Core Light Source Life Test
10,000+h
Aging Test
1,500h
Structural Tests
30+
Safety Checks
200+
Compliance
FDA / FCC / CE / UKCA
Toxicity-free &
Environmental Impact
Environmental Impact
California Proposition 65 Compliant roHS European Union Compliant
Smart Software
Supported Software
WeCreat MakeIt / Lightburn
Operating System
Windows / Mac OS
Connection Method
USB / Wi-Fi
Supported Files
WWS/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/WEBP/STL/PLY/OBJ/GLB
General Information
Product Dimensions
450*270*442.8mm
Product Weight
20kg
Max. Machine Input Power
240W
Power Adapter Input Voltage
AC 100~240V,50/60HZ
FAQ
1. When will I receive my order?
Lumos Ultra is currently available for pre-order. Orders placed now are expected to ship in September 2026. Once your order ships, you'll receive a confirmation email with tracking information.
2. What is the difference between a UV laser and a diode laser?
The key differences are:
- Wavelength: UV lasers use a shorter wavelength, allowing better absorption on transparent and reflective materials.
- Heat impact: UV lasers generate less heat, reducing burn marks and material deformation.
- Material compatibility: UV lasers can engrave glass and clear acrylic directly, which diode lasers typically cannot.
3. What is the working area of the Lumos Ultra laser?
The working area varies depending on the selected mode and accessory:
- Flat Engraving Mode: 210 × 210 mm
- 3D Crystal Engraving (Inner Engraving): 70 × 70 × 135 mm
- With Slide Extension: 183 × 520 mm
- Rotary + Slider Combination:
Maximum diameter: 100 mm
Maximum length: 380 mm - Conveyor Feeder Mode:
Single processing area: 206 × 206 mm
Supports continuous cycle engraving for batch production
This modular design ensures flexibility for small detailed projects as well as extended and batch engraving tasks.
4. What materials can WeCreat Lumos Ultra 6W UV + 60W/100W MOPA laser engrave?
The Lumos Ultra laser is specially designed for high-precision engraving on a wide range of materials. UV handles almost anything. MOPA dominates every metal.
5. Can the Lumos Ultra laser engrave transparent materials?
Yes. Unlike diode lasers, UV lasers operate at a shorter wavelength, which allows them to engrave directly on transparent materials such as glass without applying coatings.
6. Can Lumos Ultra laser engrave in multiple colors?
Yes. The 60W/100W MOPA laser can engrave in 100+ different colors.
7. What is the main difference between the 60W and 100W MOPA?
The main differences are processing efficiency, engraving depth, and metal cutting capability.
8. Why is it only 6W for UV laser? Is 6W powerful enough?
Yes, 6W is absolutely sufficient for a UV laser system.
UV lasers work differently from diode or CO₂ lasers. Thanks to the shorter 355nm wavelength, UV light is absorbed much more efficiently by many materials. This allows the Lumos Ultra 6W to achieve:
- Extremely fine detail engraving
- High-contrast marking
- Minimal heat impact
- Clean results on delicate materials
Higher wattage is not always better for UV applications. In fact, excessive power may damage fine materials. The 6W output is carefully optimized for precision engraving, color marking, and detailed 3D work.
9. Does the Lumos Ultra support multiple field lenses?
Yes. The Lumos Ultra supports interchangeable field lenses.
Green field lens for crystal inner engraving
Purple field lens for flat or cylindrical engraving
Red field lens for MOPA device using
Users can choose the appropriate lens based on their application needs. Please refer to the product specifications for compatible lens models.
10. What materials are suitable for 3D internal engraving?
Currently K9 crystal only. It allows the UV laser to focus energy inside the material without damaging the surface.
11. What software does the Lumos Ultra support?
The Lumos Ultra supports:
- WeCreat official software (recommended for optimized compatibility)
- LightBurn (depending on version compatibility and configuration)
The official software provides guided setup, parameter presets, and easier workflow. Advanced users may adjust detailed parameters such as power, frequency, and speed for professional applications.
